Rocky Cave – Vacuum Robot Home

Having a vacuum robot is a first step in getting your home back when the dog is shedding.. Our old vacuum was quite a pain to use and refilling/clearing the water and dust containers took so much effort that i usually just took the vacuum cleaner myself..

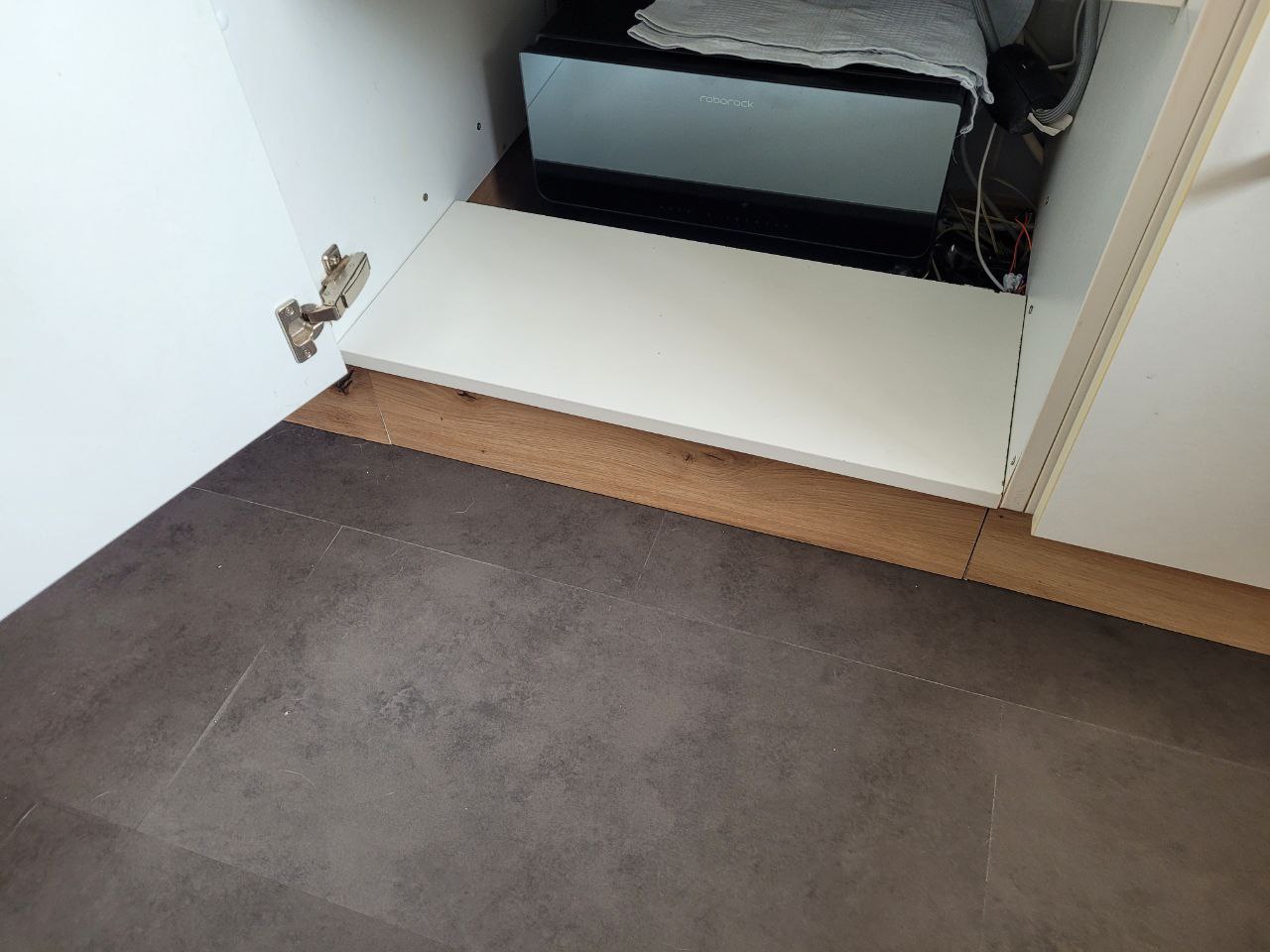

Having a new robot with a docking station and a water connection meant the old space under the kitchen furniture “Harry Potter Style” had to be renovated and extended.

Inspired from childhood dreams of heaving my own batcave – but missing the cliff and house – I had to fulfill this at least for Rocky, who gets rid of alot of hair for me.. 🙂

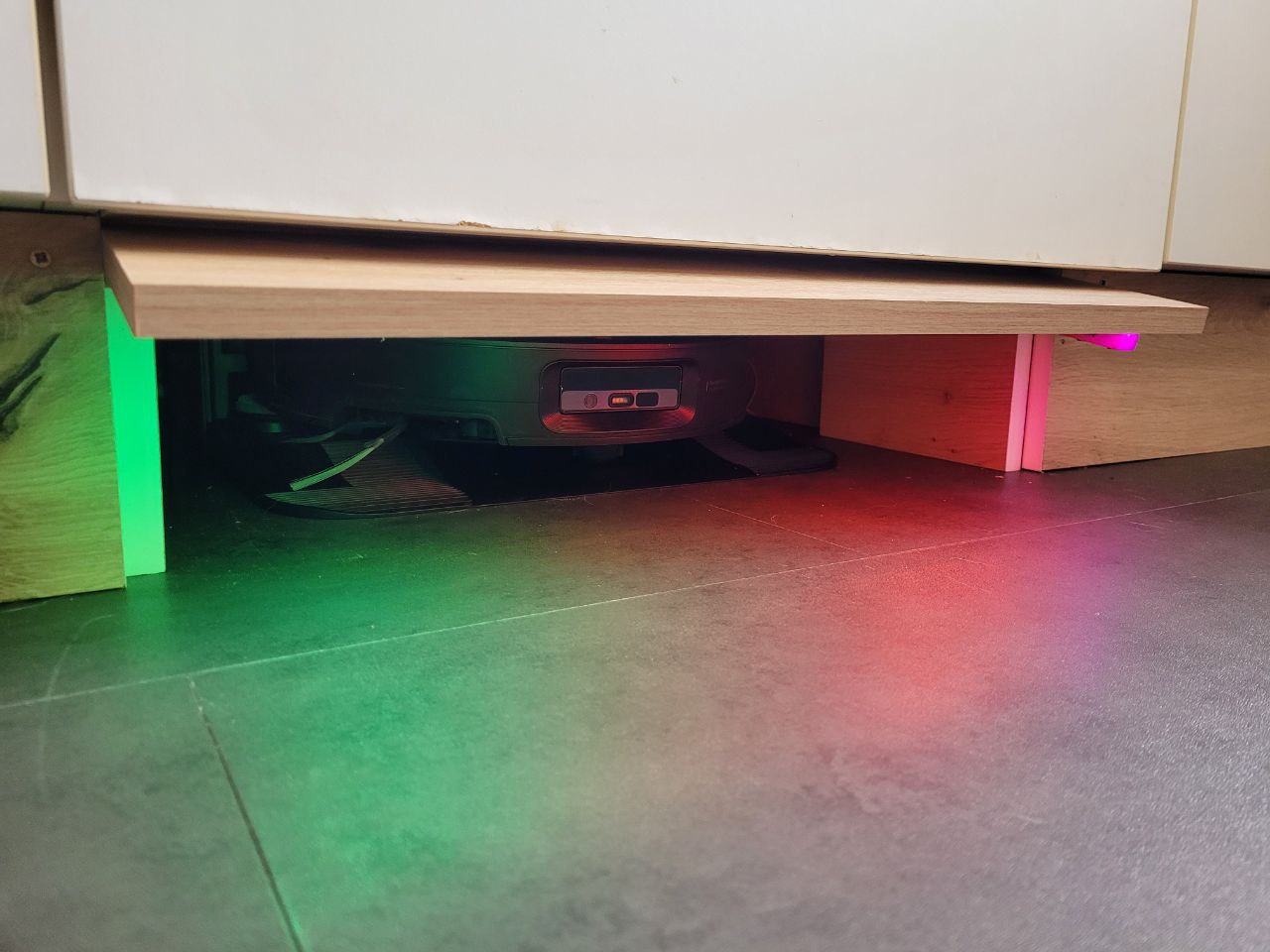

Welcome to the Rocky Cave.

Still missing upgrades

  • Miniature Mailbox
  • House number

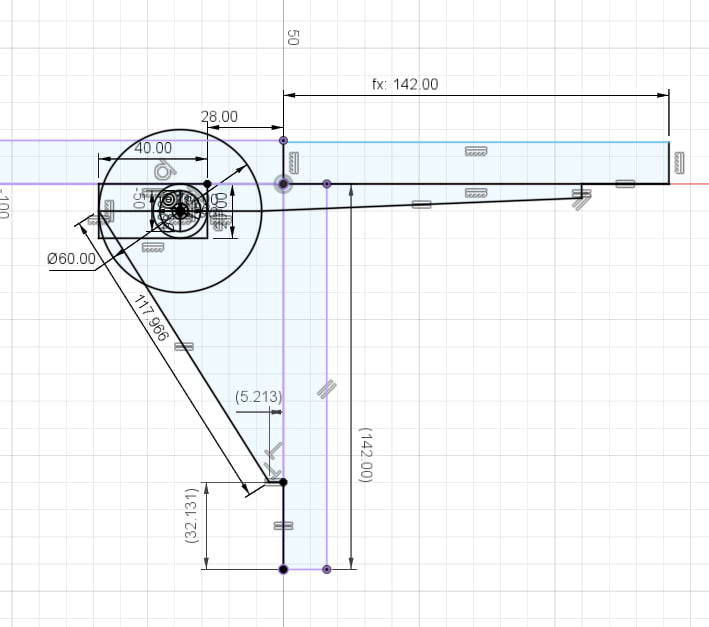

  • fixing 90% -> 100% opening with better mechanic design or more power..

Material

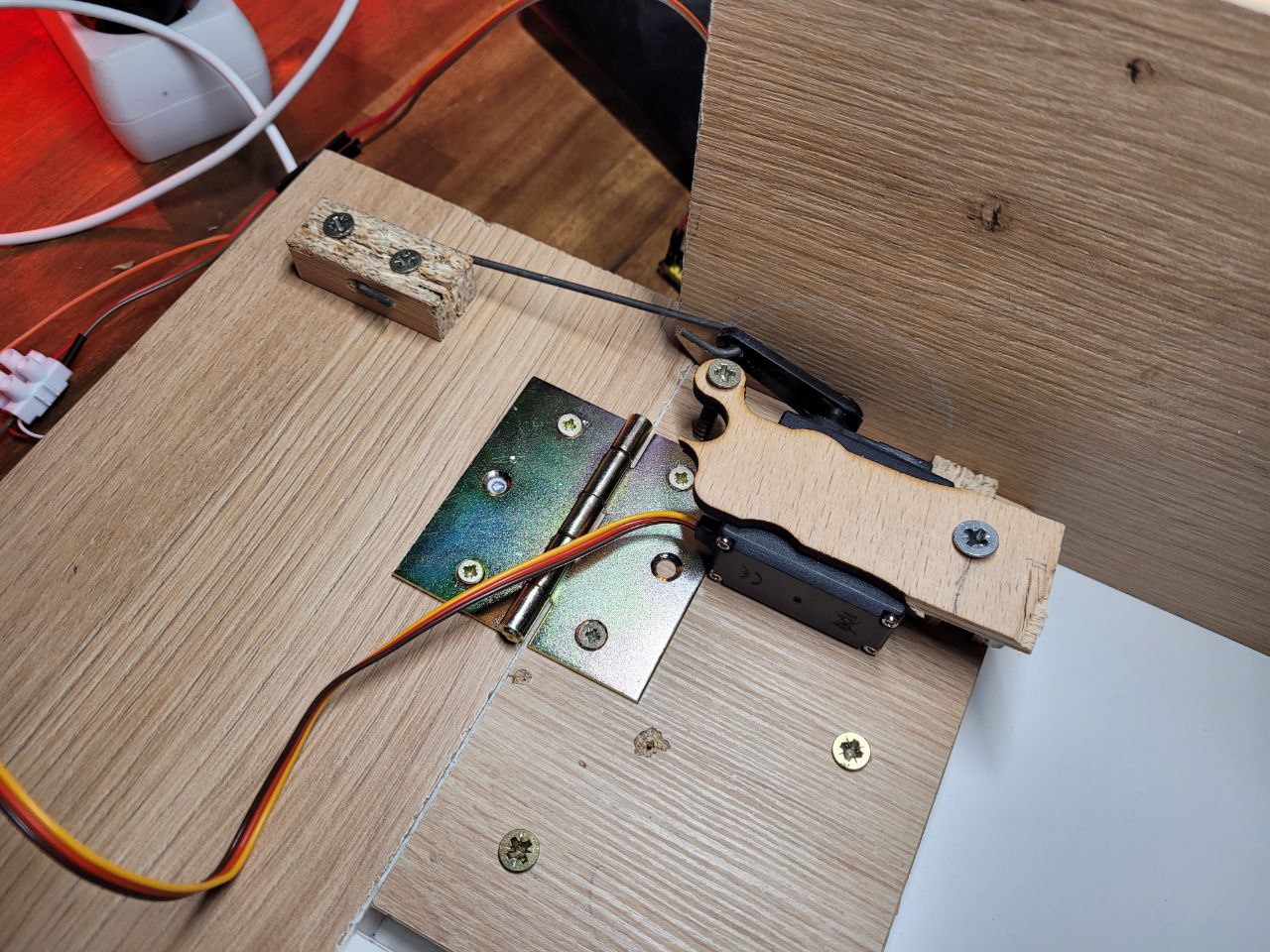

  • Servo (15KG – MZ996)

  • ESP32 (NodeMCU dev Board)

  • LED stripe ~30Leds (WS2812B)

  • Endstop

  • Power adapter (5V 4A)

  • Hinges

  • Kitchen bar / Shelf  (Particle boards already used in Kitchen shelfs and bar)

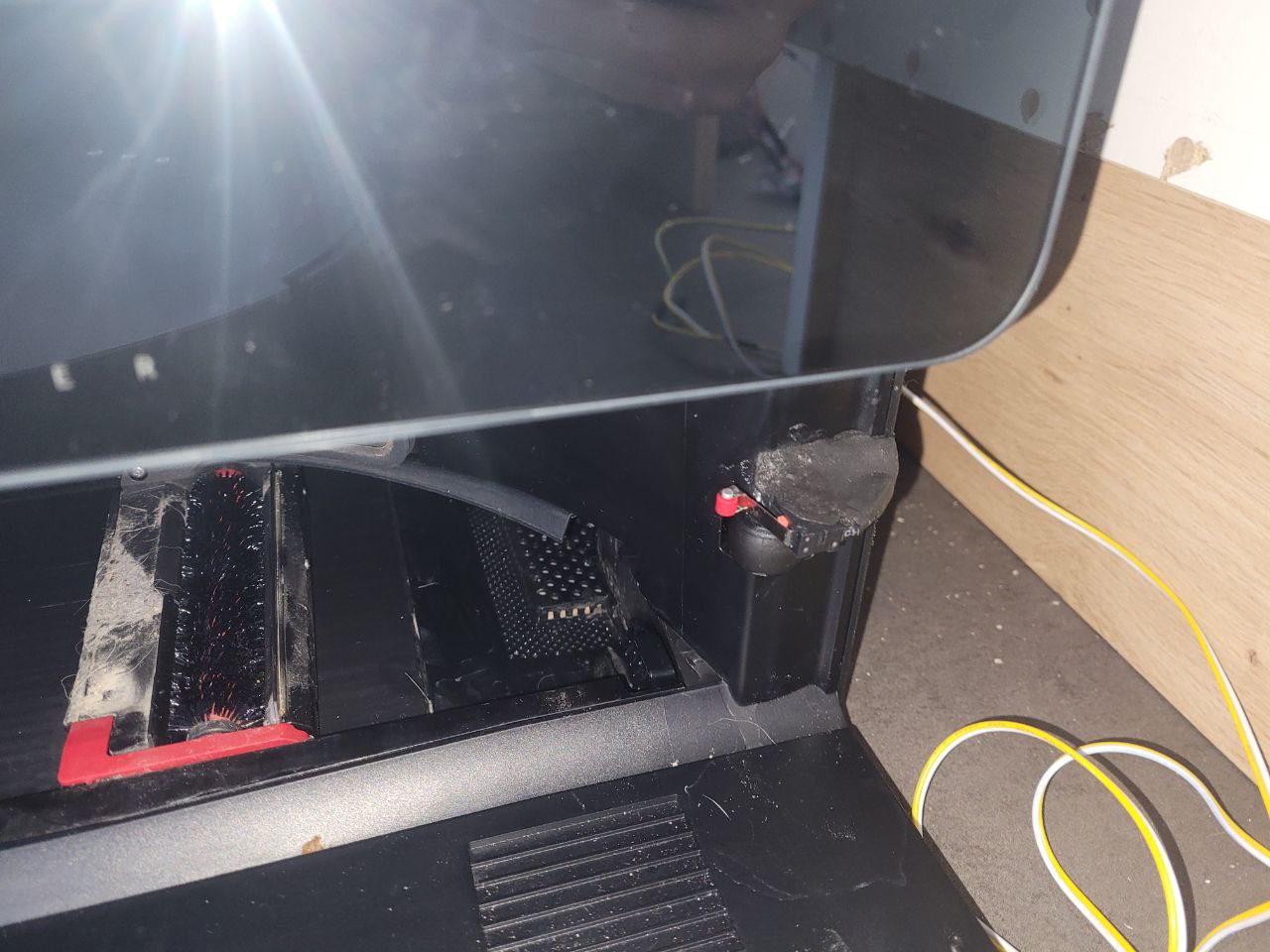

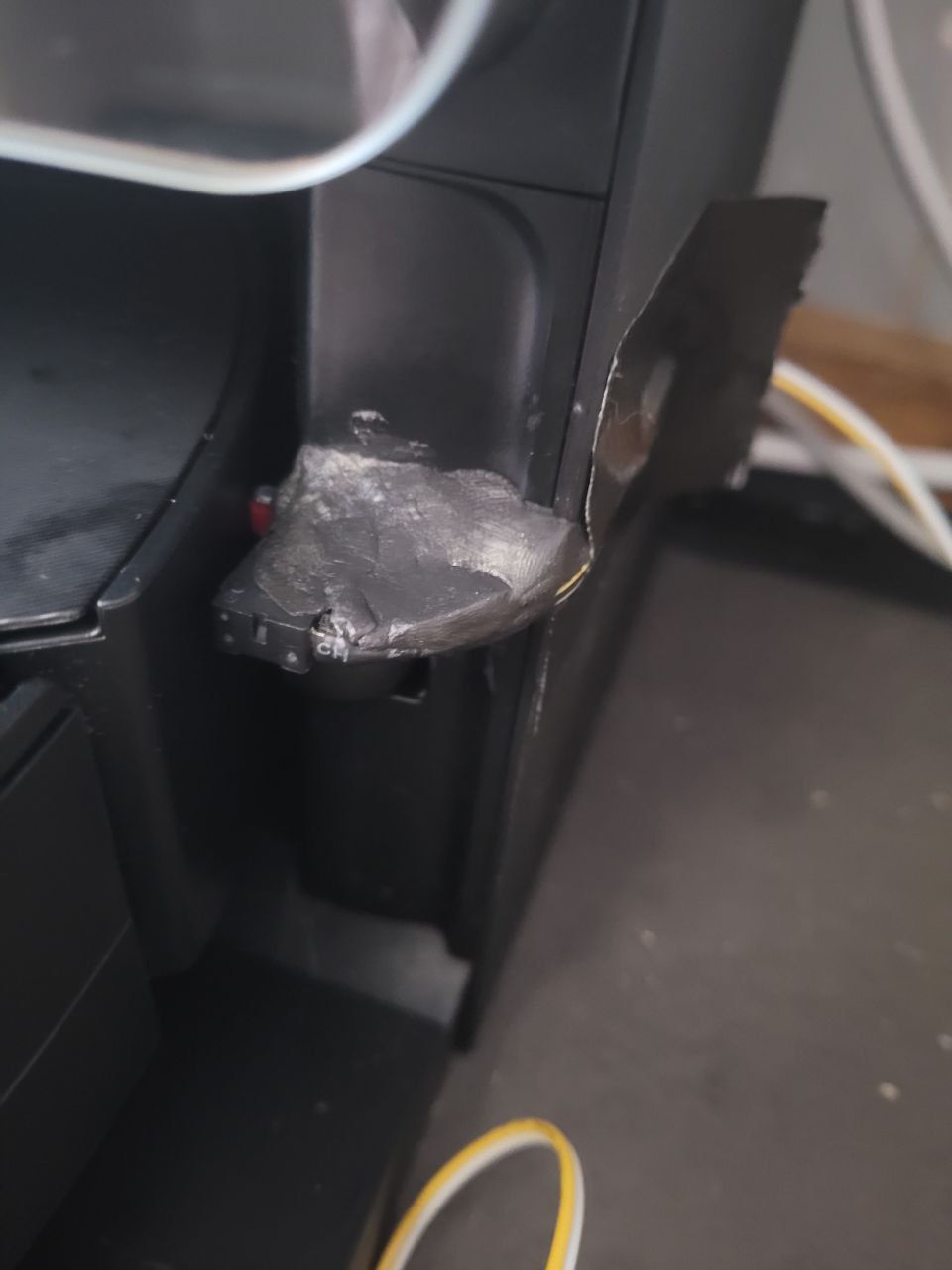

  • Sugru (to fix Endstop to Docking station)

Software

ESPHome config
