Topography Prints
Sources for 3D topography data:
Switzerland: Federal Office of Topography swisstopo https://www.swisstopo.admin.ch/de/geodata/height/alti3d.html
Europe: European Copernicus Programme https://land.copernicus.eu/imagery-in-situ/eu-dem/eu-dem-v1.1

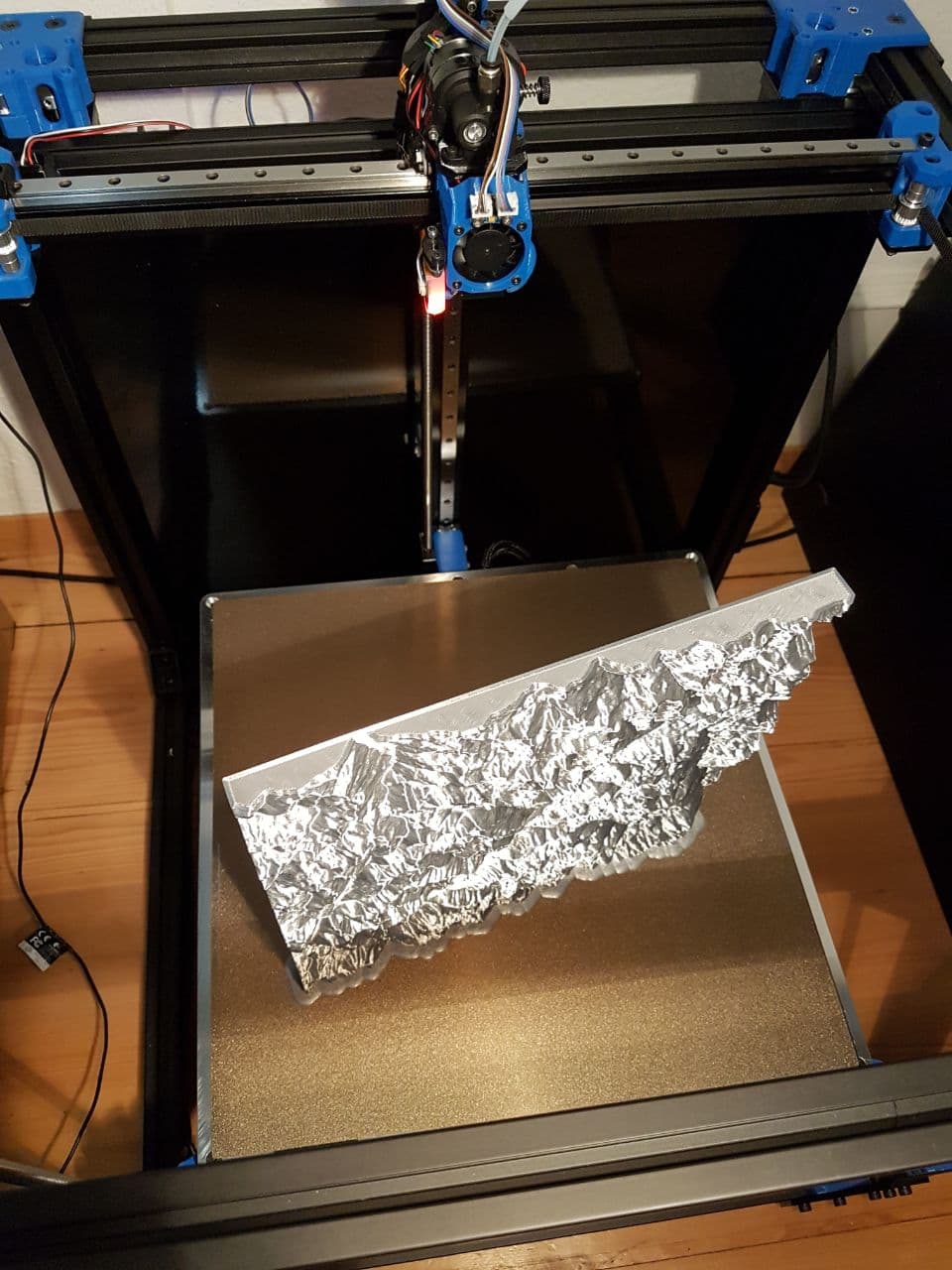

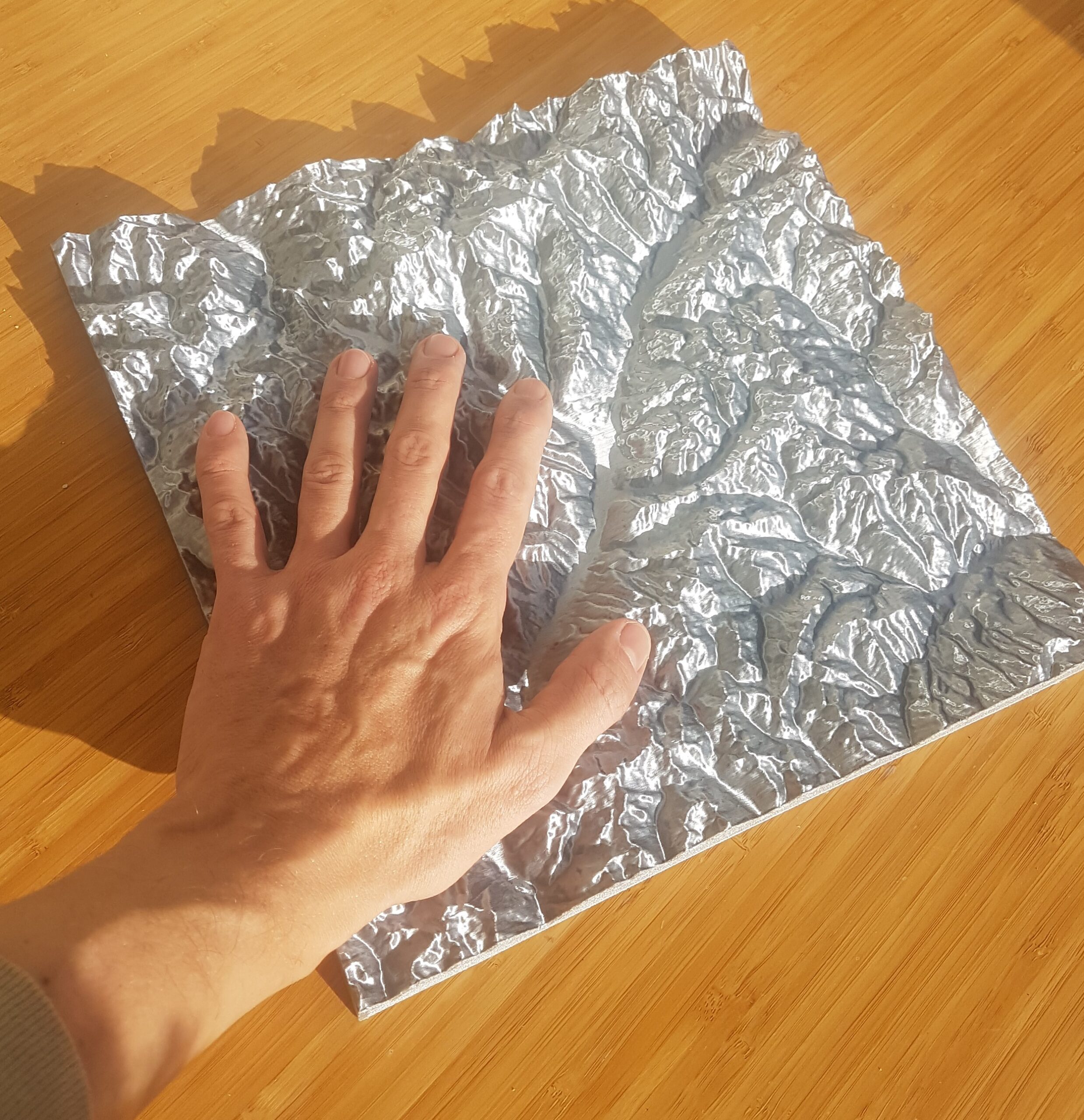

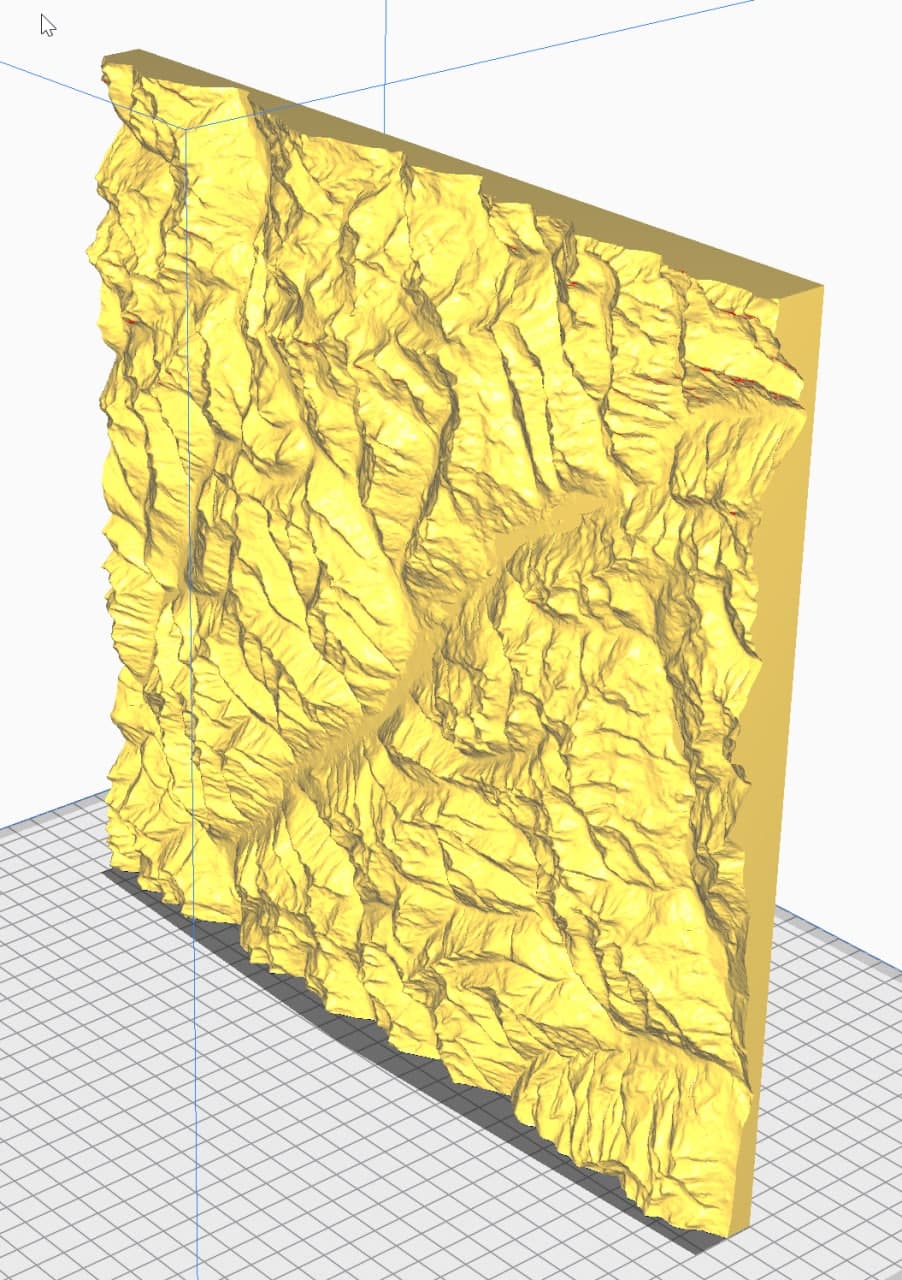

Swiss Alps (Engadin, Graubünden)
Size: 300 x 300 mm²
Scale: 1:200000 Region: 60 x 60 km²

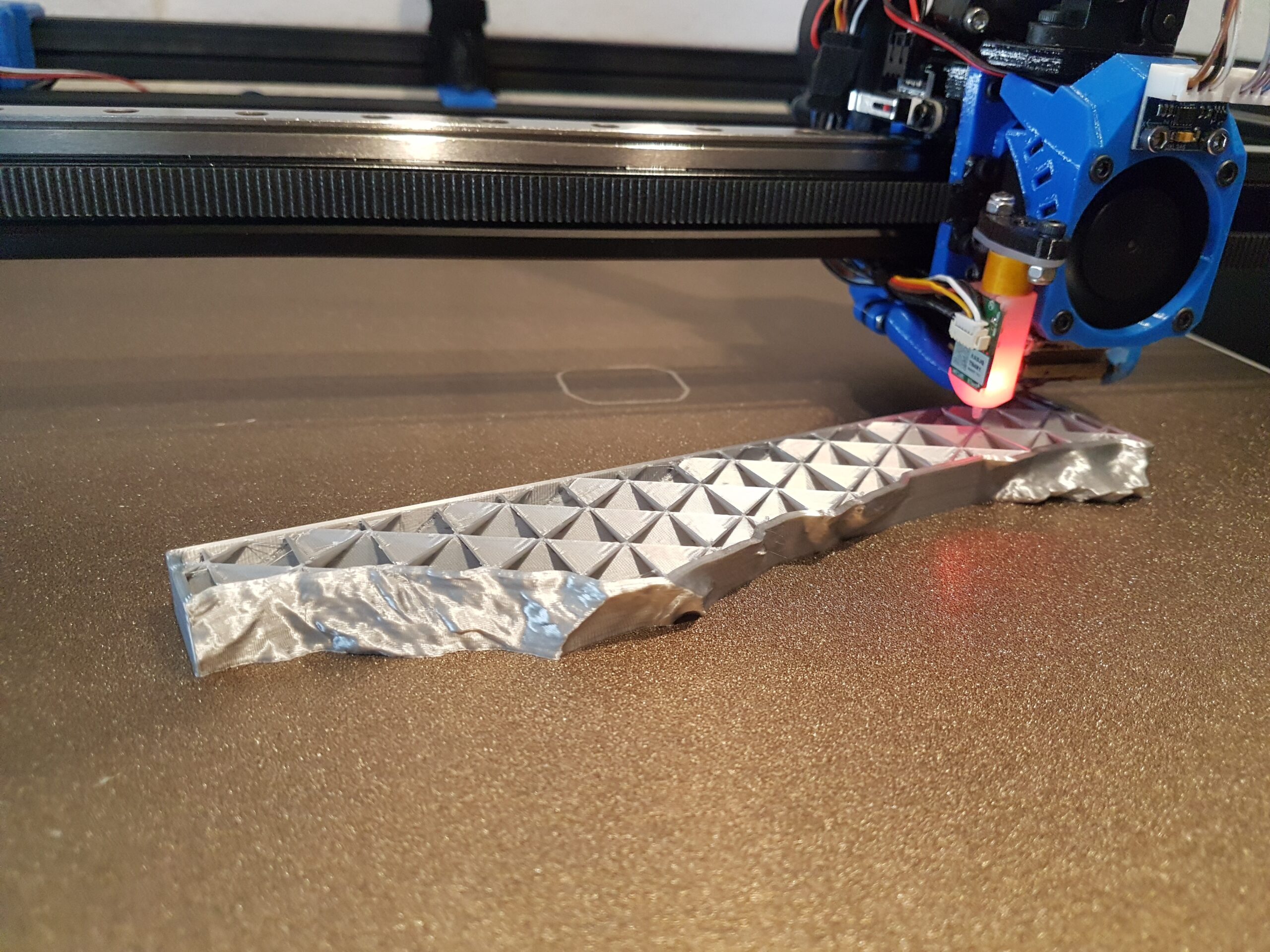

Printer: RatRig v-core3, Filament: Geeetech Silk Silver PLA
Print Settings: layer heigth 0.2mm, layer width 0.42mm, 4 walls, 10% infill, 100-150mm/s, 3500mm/s², print time ~24h

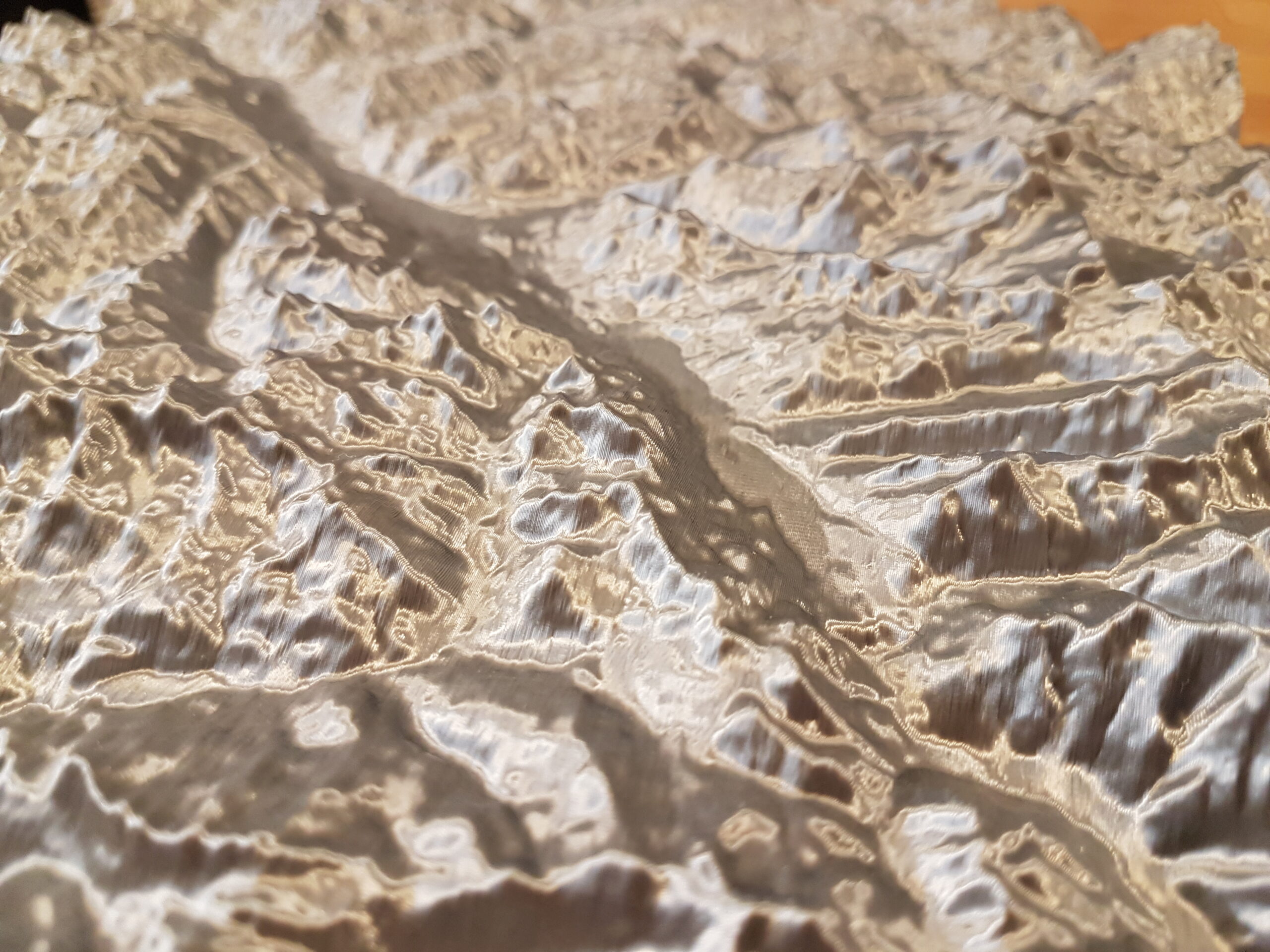

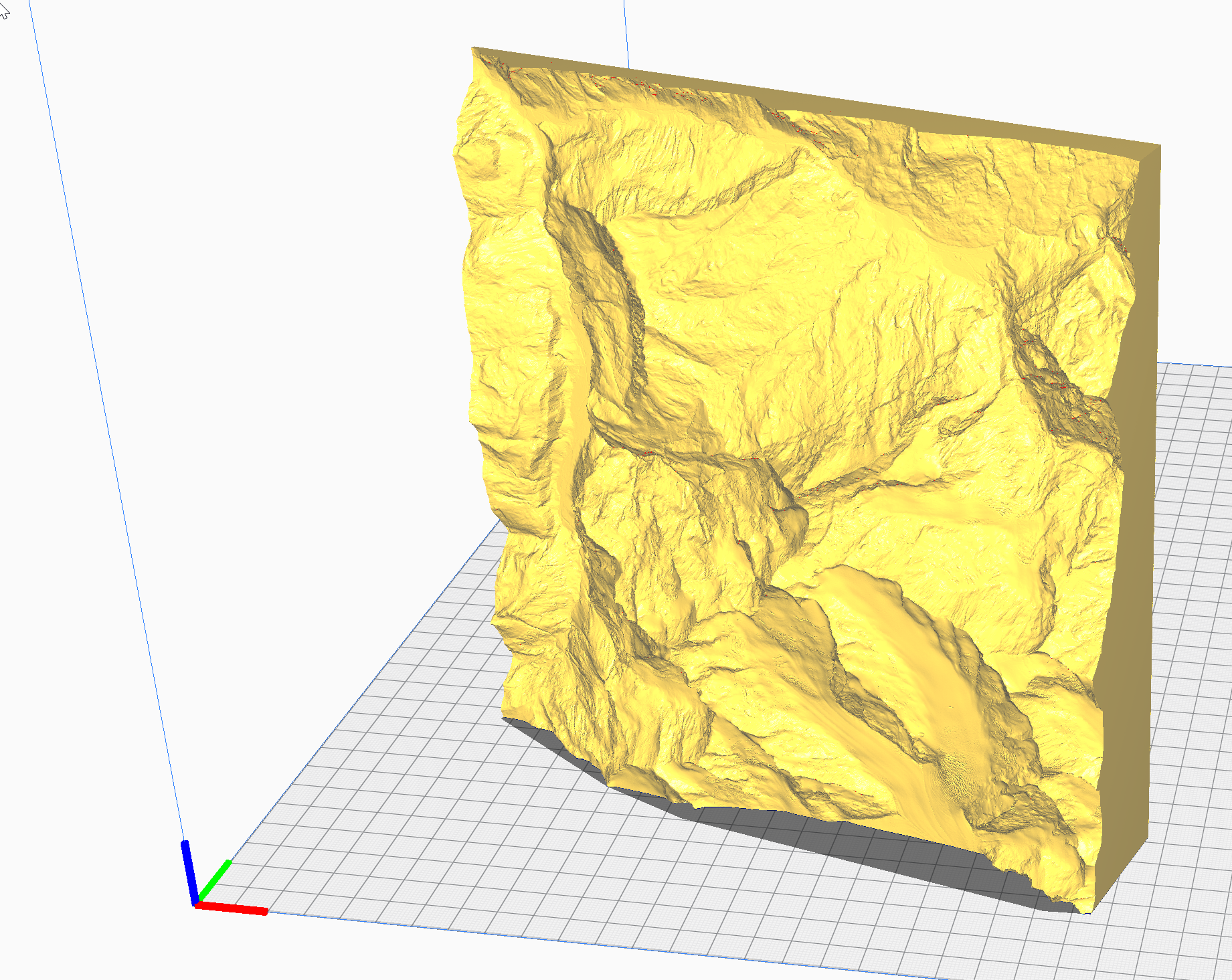

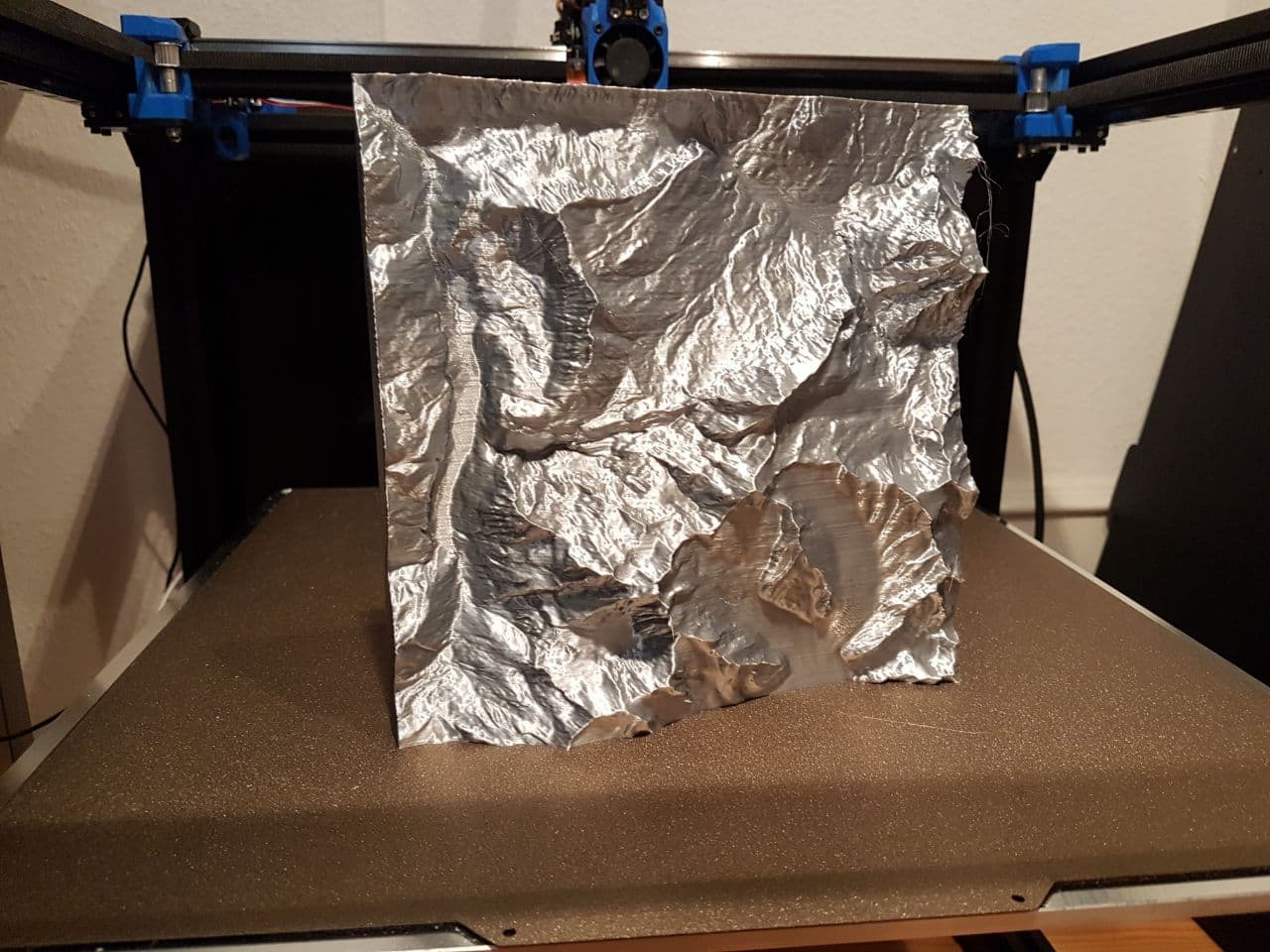

Swiss Alps (Eiger, Jungfrau, Mönch, Berner Oberland)
Size: 200 x 200 mm²
Scale: 1:80000 Region: 16 x 16 km²
Printer: RatRig v-core3, Filament: Geeetech Silk Silver PLA
Print Settings: layer heigth 0.2mm, layer width 0.42mm, 4 walls, 10% infill, 100-150mm/s, 3500mm/s², print time ~19h

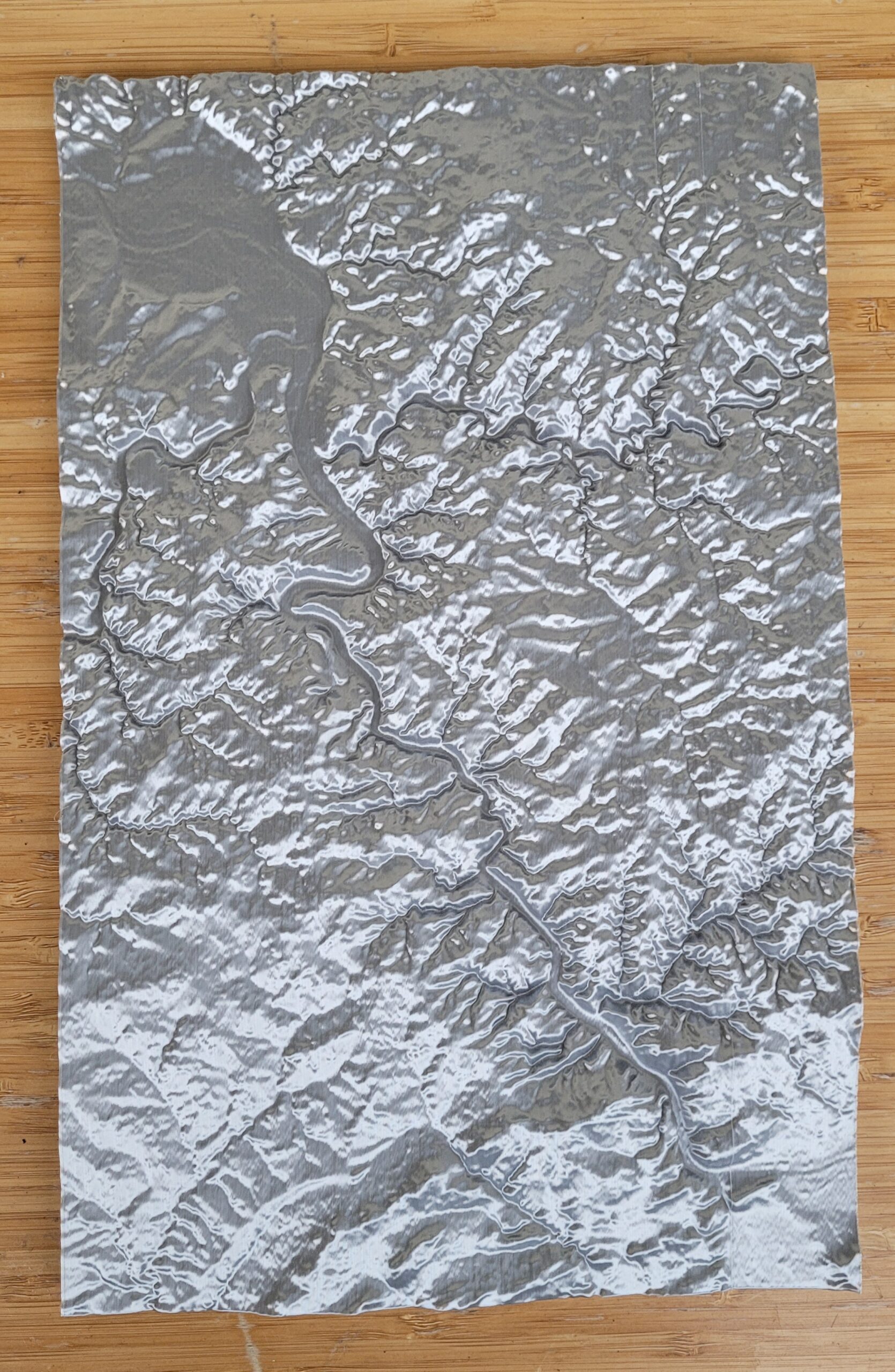

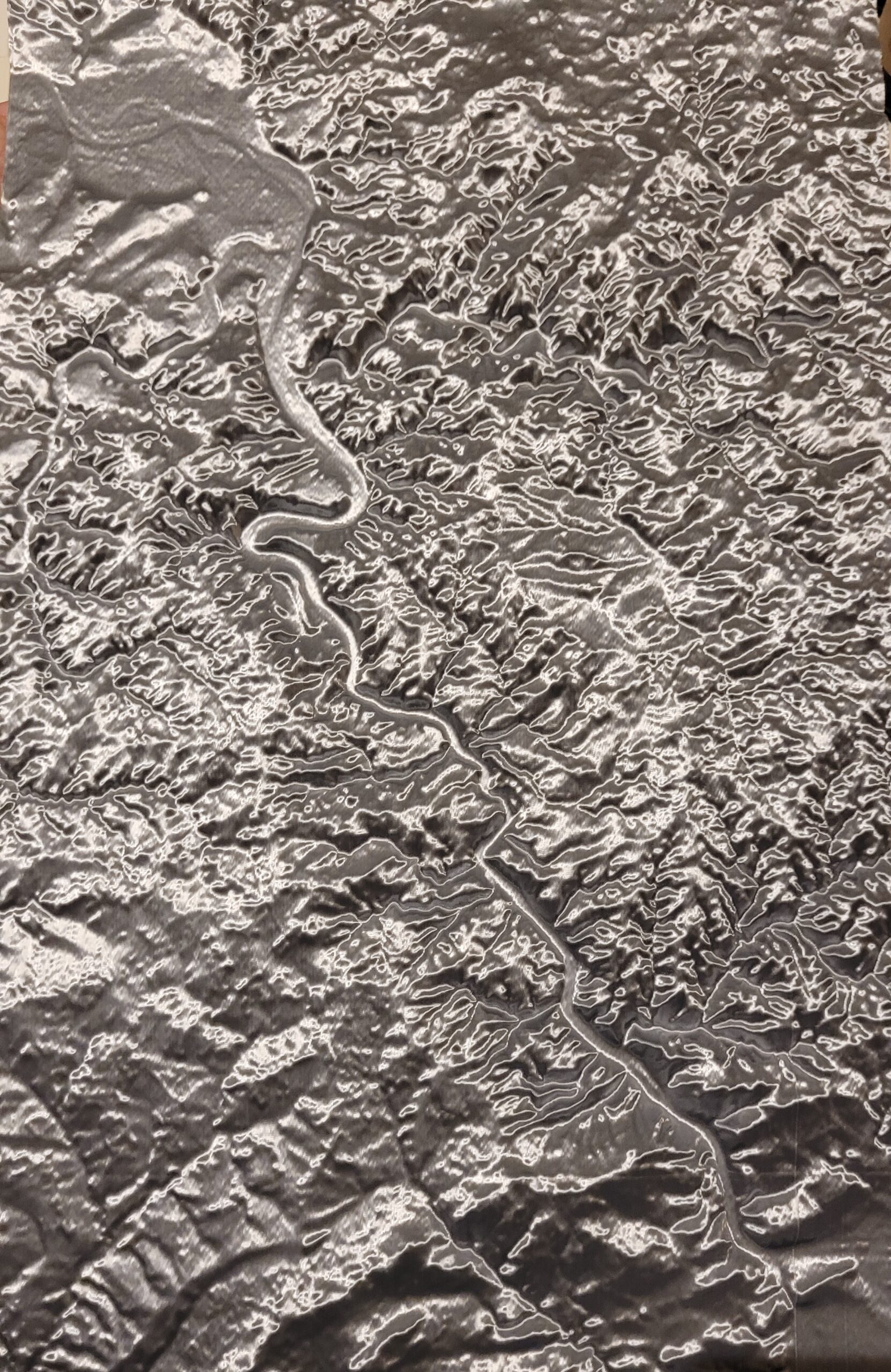

Rhein, Bingen – Koblenz , Germany
Size: 300 x 200 mm²
Printer: RatRig v-core3, Filament: Geeetech Silk Silver PLA
Print Settings: layer heigth 0.2mm, layer width 0.42mm, 4 walls, 10% infill

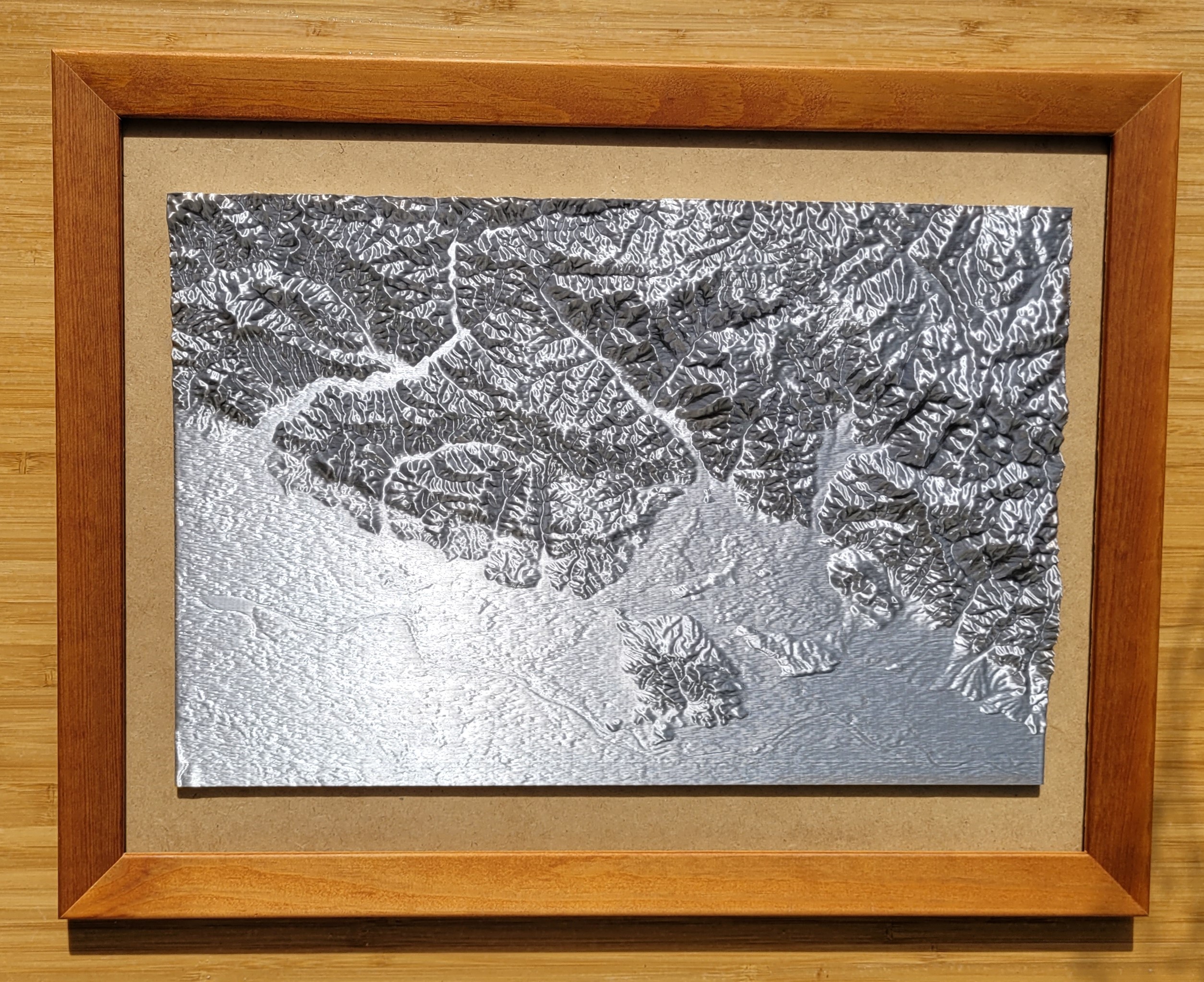

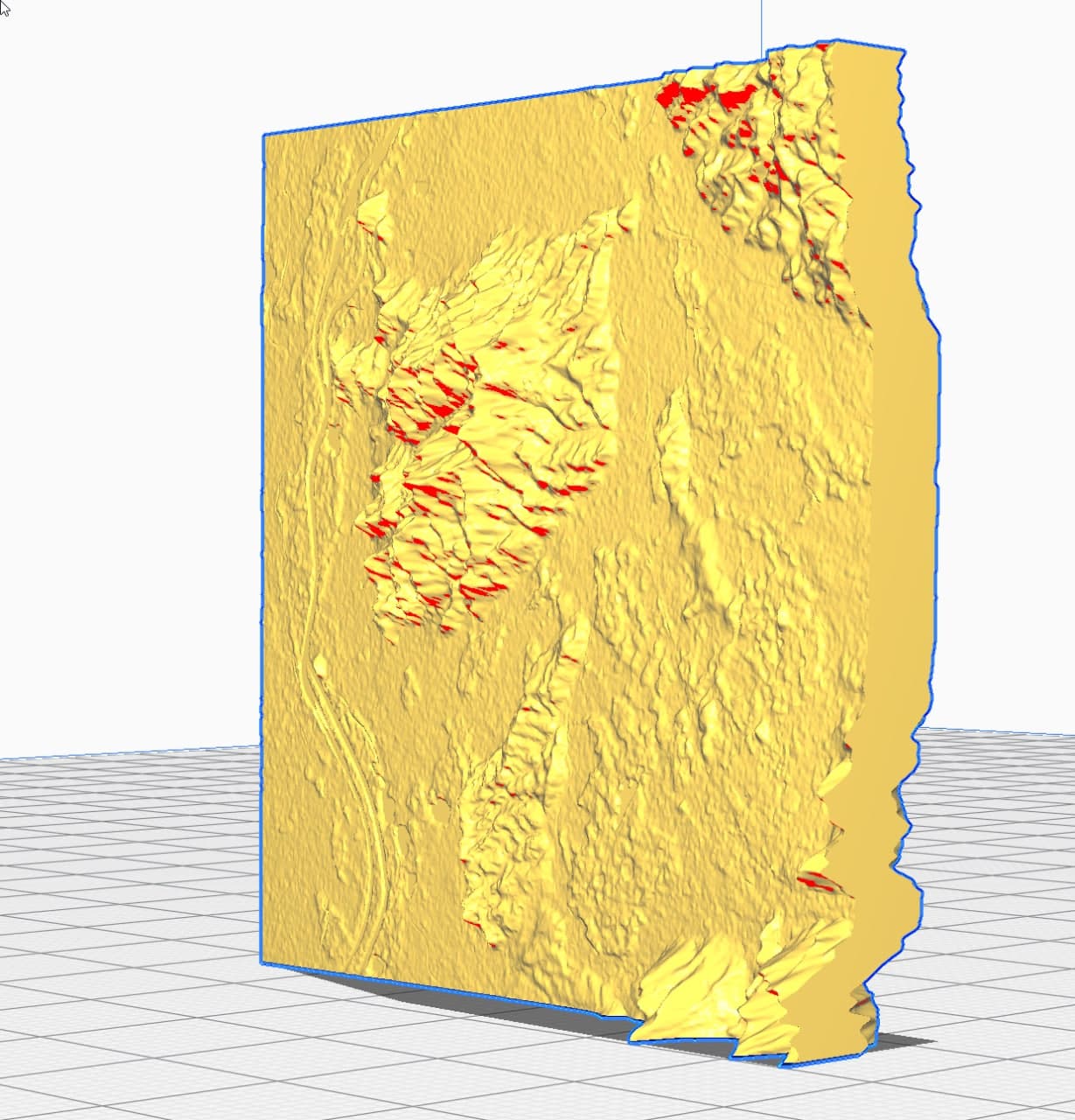

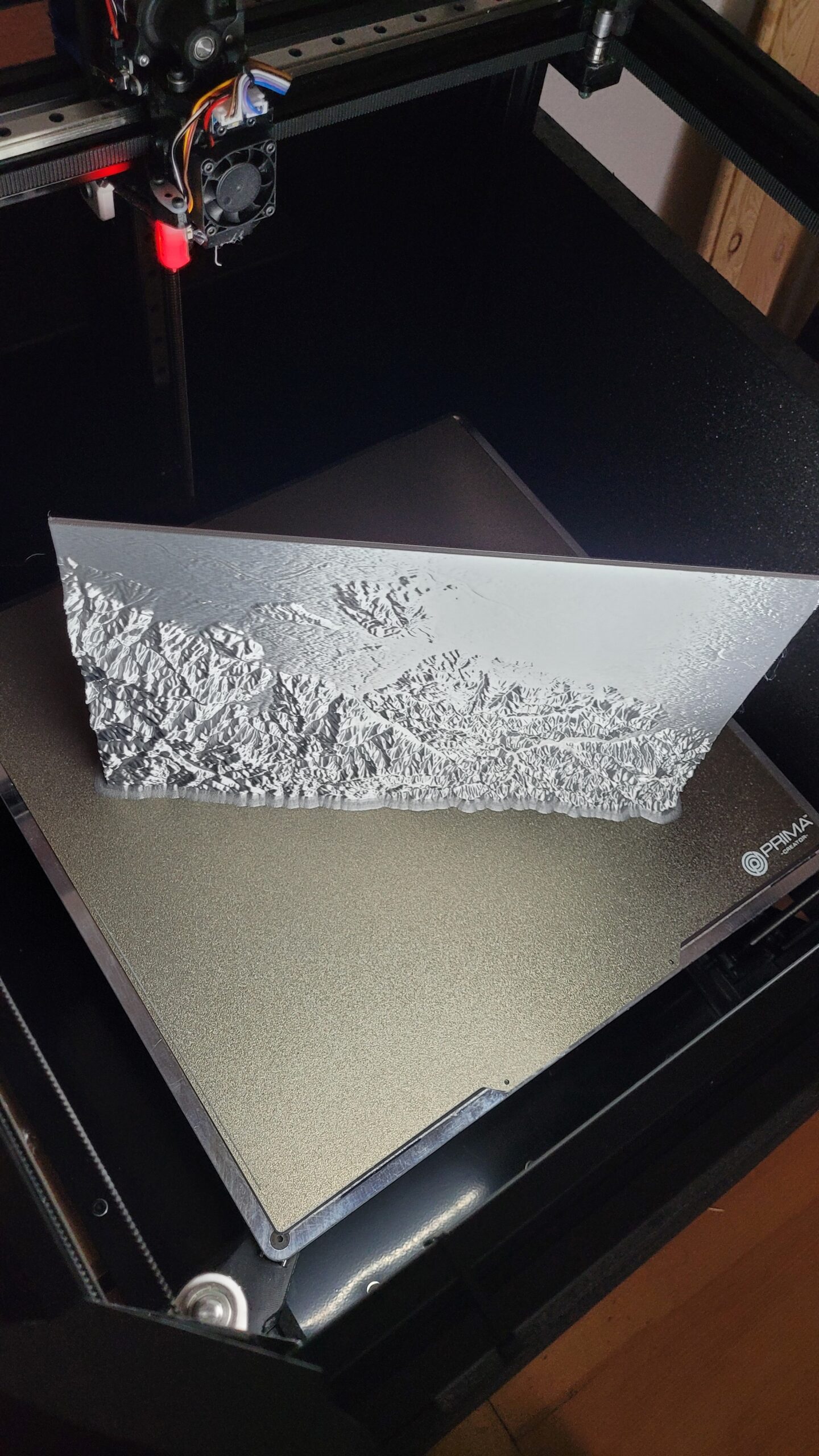

Freiburg, Breisgau, Baden-Württemberg, Germany
Size: 300 x 300 mm²
Size: 300 x 200 mm²
Printer: RatRig v-core3, Filament: Geeetech Silk Silver PLA
Print Settings: layer heigth 0.2mm, layer width 0.42mm, 4 walls, 10% infill

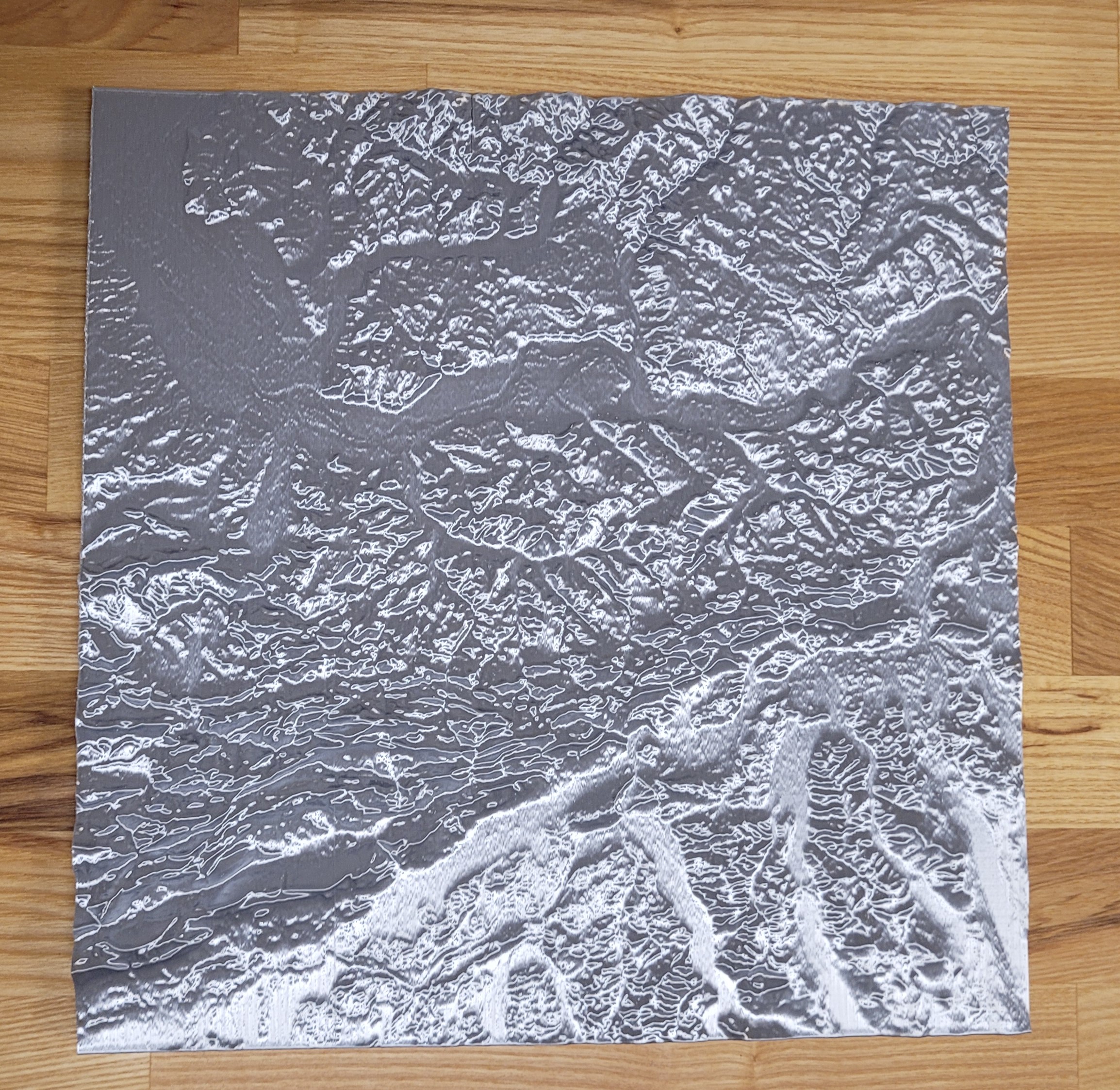

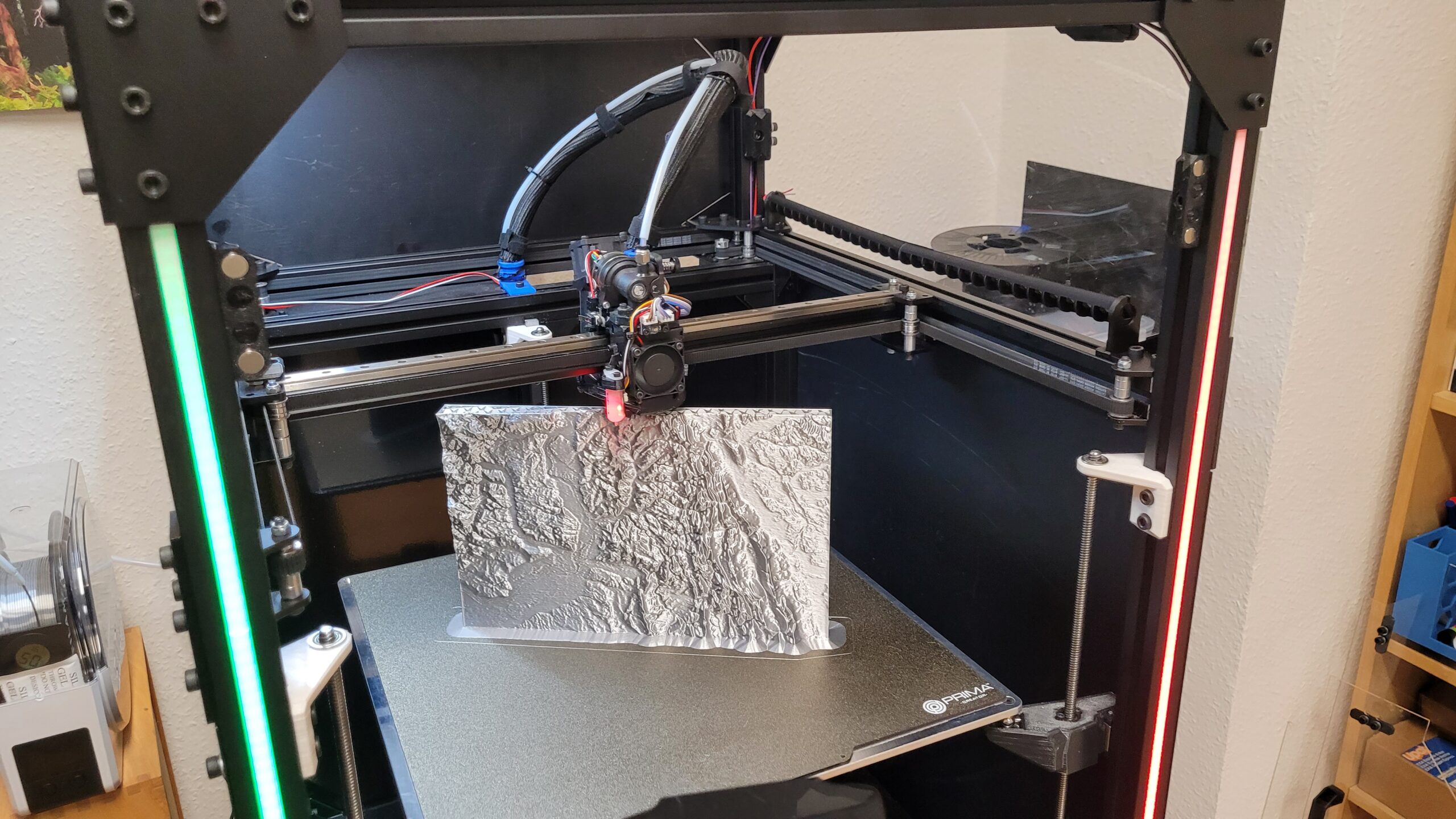

Basel, Switzerland
Size: 300 x 300 mm²
Size: 300 x 200 mm²
Printer: RatRig v-core3, Filament: Geeetech Silk Silver PLA
Print Settings: layer heigth 0.2mm, layer width 0.42mm, 4 walls, 10% infill

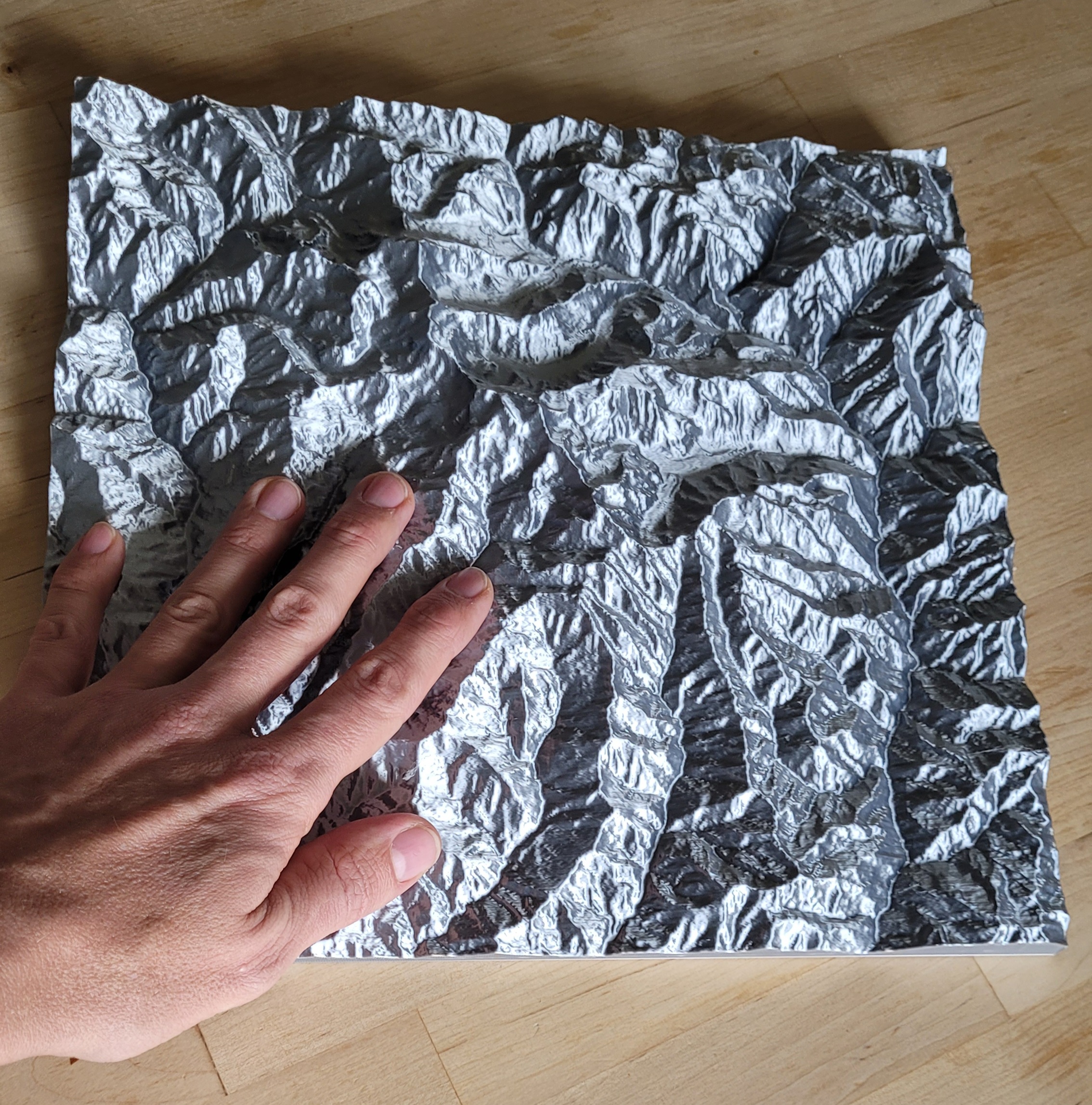

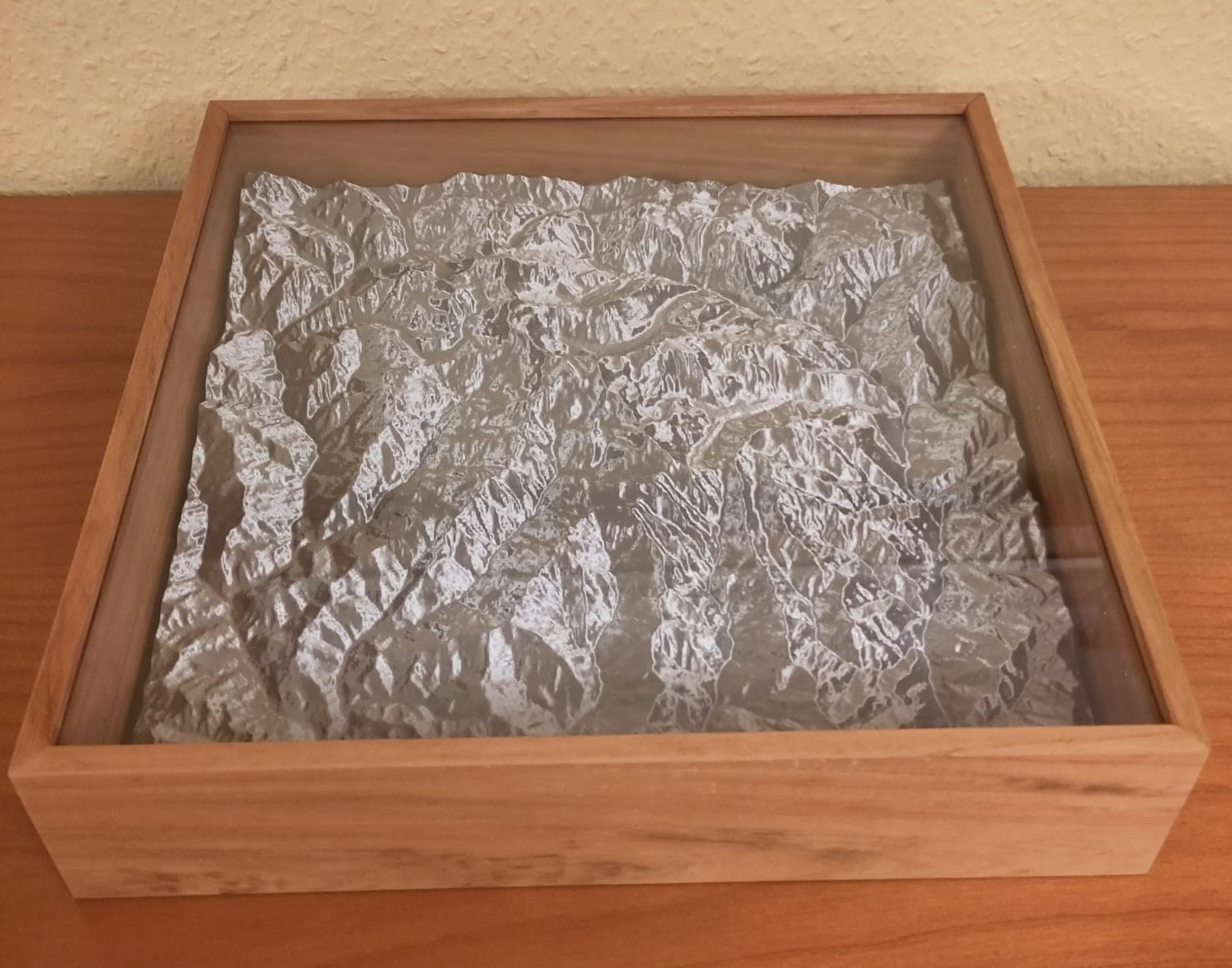

Manaslu, Nepal
Size: 300 x 200 mm²
Printer: RatRig v-core3, Filament: Geeetech Silk Silver PLA
Print Settings: layer heigth 0.2mm, layer width 0.42mm, 4 walls, 10% infill
Kaiserstuhl, Baden-Württemberg, Germany
Size: 50 x 50 mm²
Scale: 1:500000 Region: 25 x 25 km²
Printer: RatRig v-core3 Filament: Amazon Basic black
Print Settings: layer heigth 0,2mm, layer width 0.4mm, 4 walls, 10% infill, 100mm/s
